Specifications:
| Subwoofer Type: | Active Dynamic-Drive IB subwoofer system |
| Drive Units: | 1 x 10" (250mm) cone long-throw |
| Frequency Response (+/-3dB): | 35Hz - 150Hz |
| Amplifier Power Output: | 150W |
| Peak Power Output: | 300W |
| Line Input Sensitivity: | 100mV for maximum output |
| Crossover Range: | 30Hz - 150Hz |
| Inputs: | Stereo Line In (2 x RCA Phono) |
| Mono (LFE) Line In (RCA Phono) | |
| Input Impedance: | Line In 10kOhms |
| LFE 5kOhms | |
| Signal-to-noise ratio: | >85dB |
| Avg. Max Output @1m: | 110dB |
| Features: | Low pass filter slope adjustment |
| Phase inversion | |
| Auto on/off | |
| High pass output | |
| Dimensions (HxWxD): | 14.3" x 13.1" x 14.6 |
| Net Weight: | 30.1 lbs. |
| Accessories: | IEC power cord, spikes as standard |
The WH-D series subwoofers are the perfect way of enhancing your music or home cinema system by adding high impact bass that is the foundation of music and cinema soundtracks. D series subs are particularly appropriate for mid-to-small rooms or anywhere space is a concern.

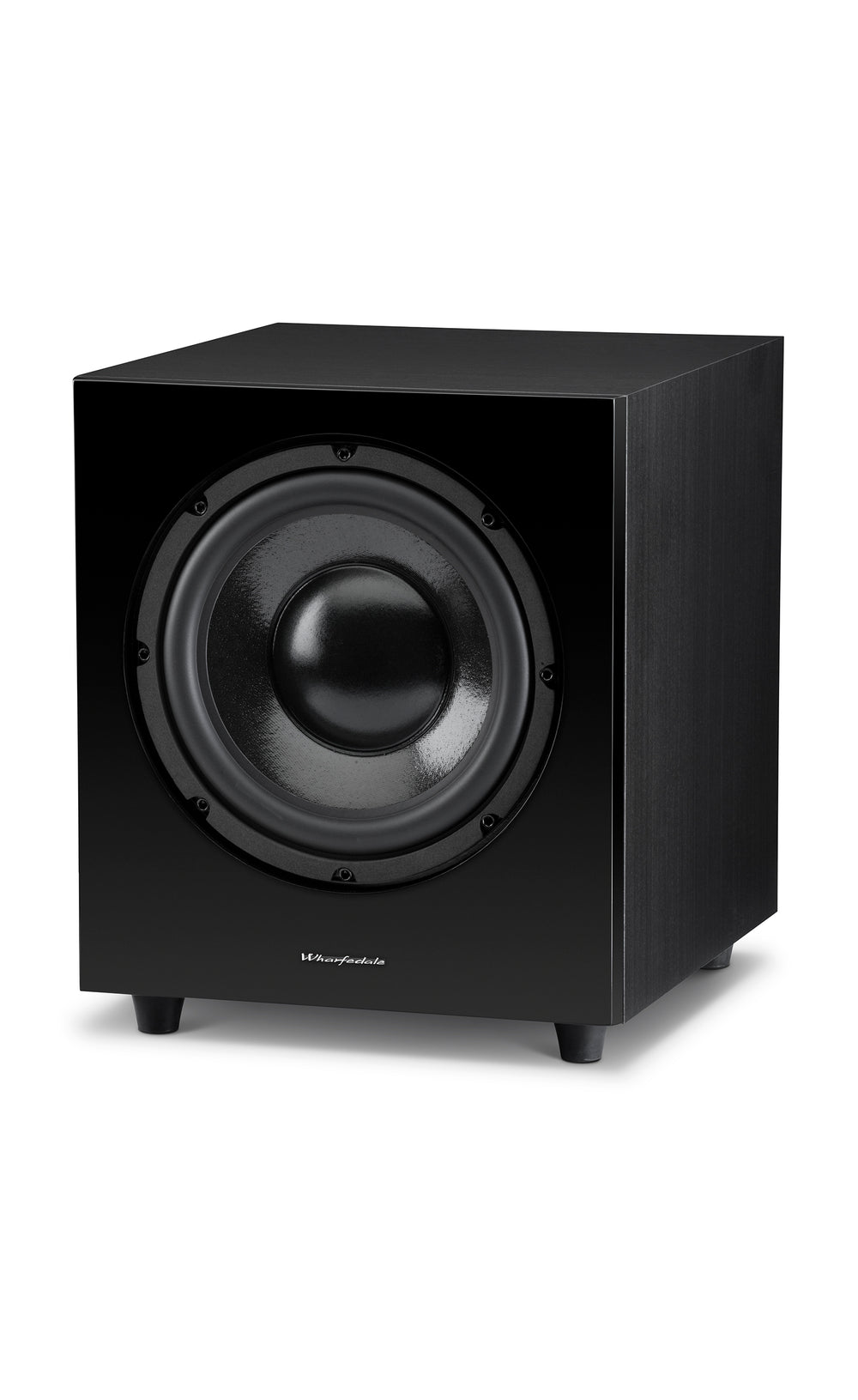

The D8 and D10 feature an active dynamic drive subwoofer system in a sealed box, providing fast, accurate and musical bass response. The D series subs employ a custom designed Class-D balanced drive power amplifier which provides power and life-like dynamics not usually found in comparably priced competitors.

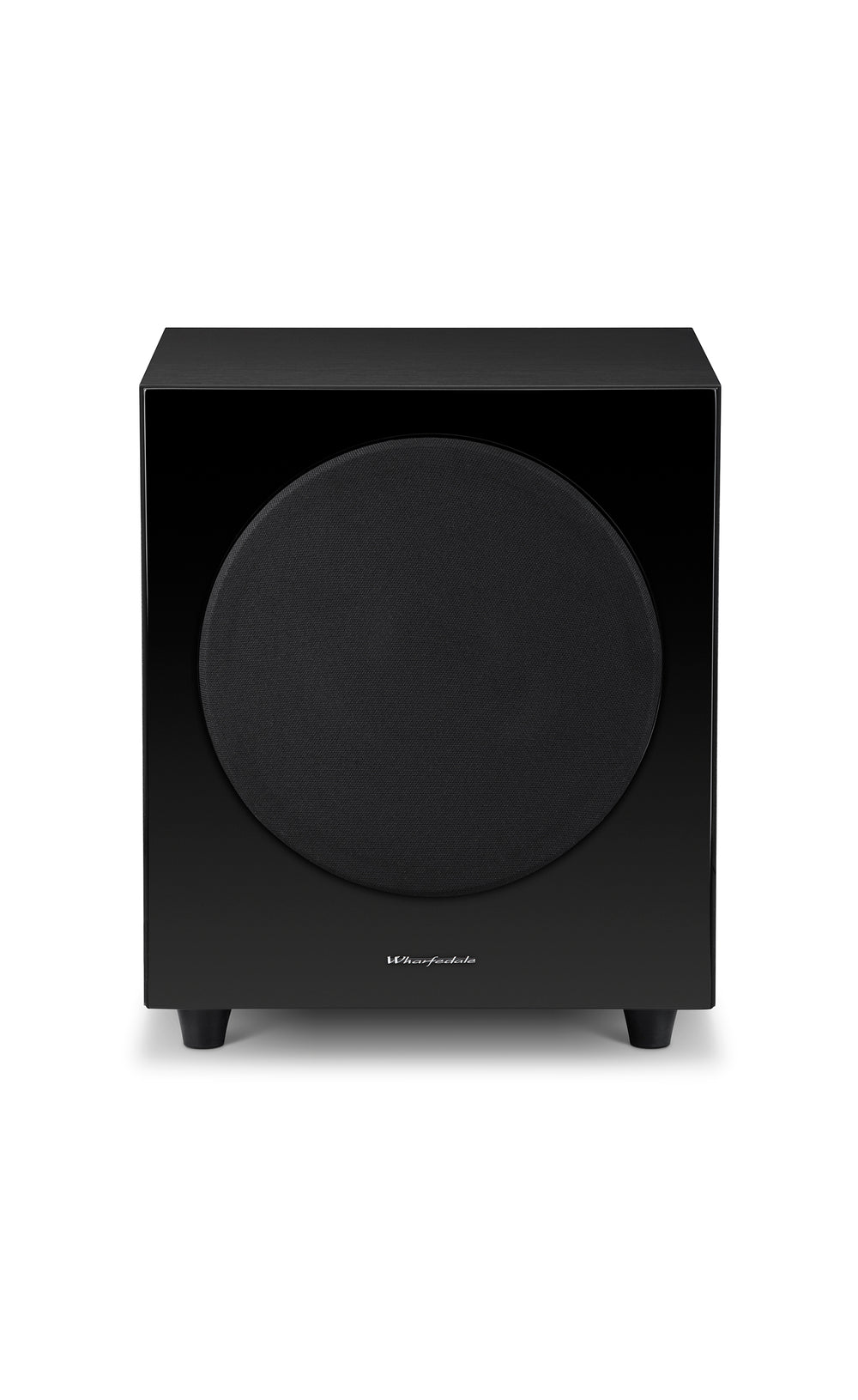

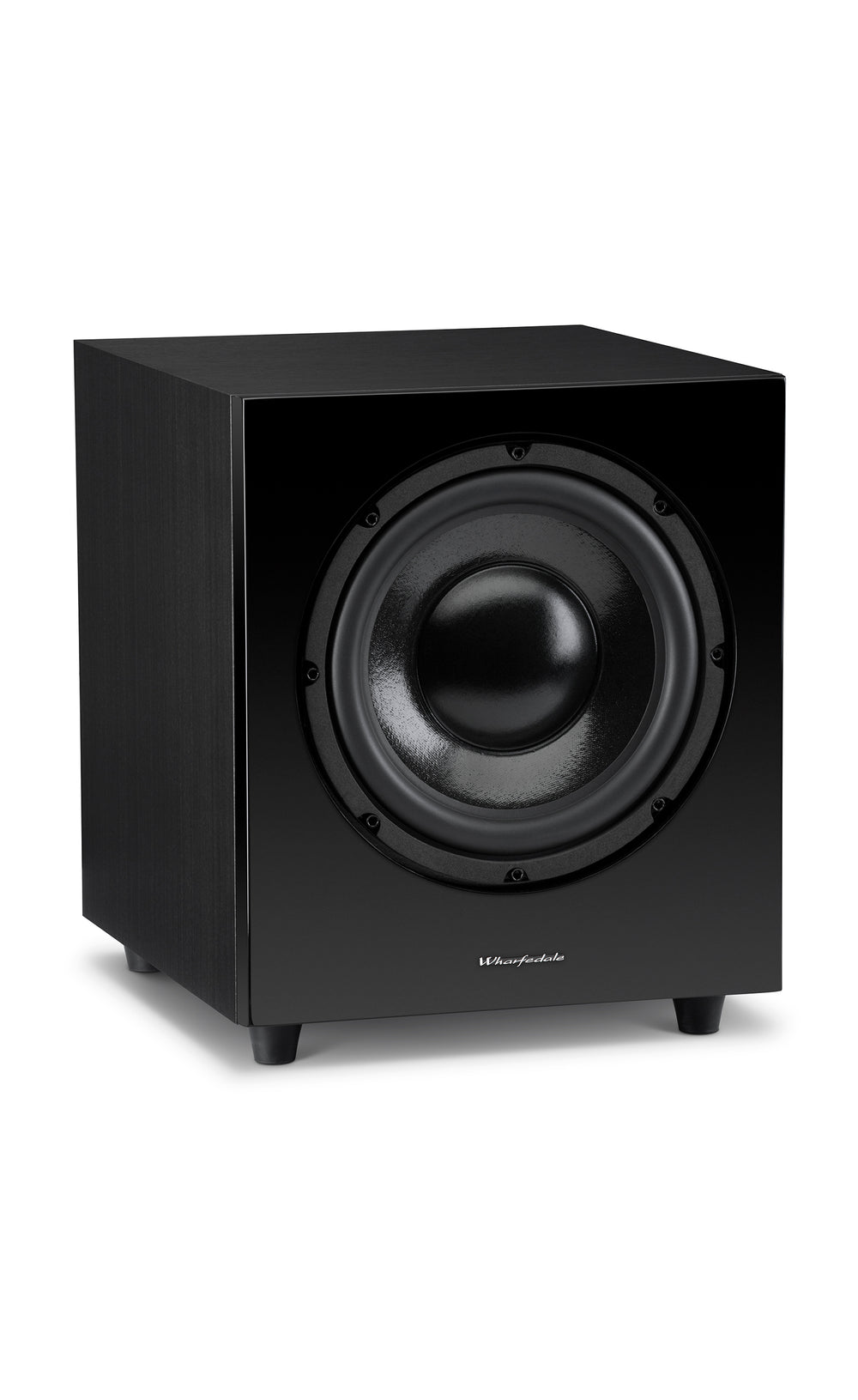

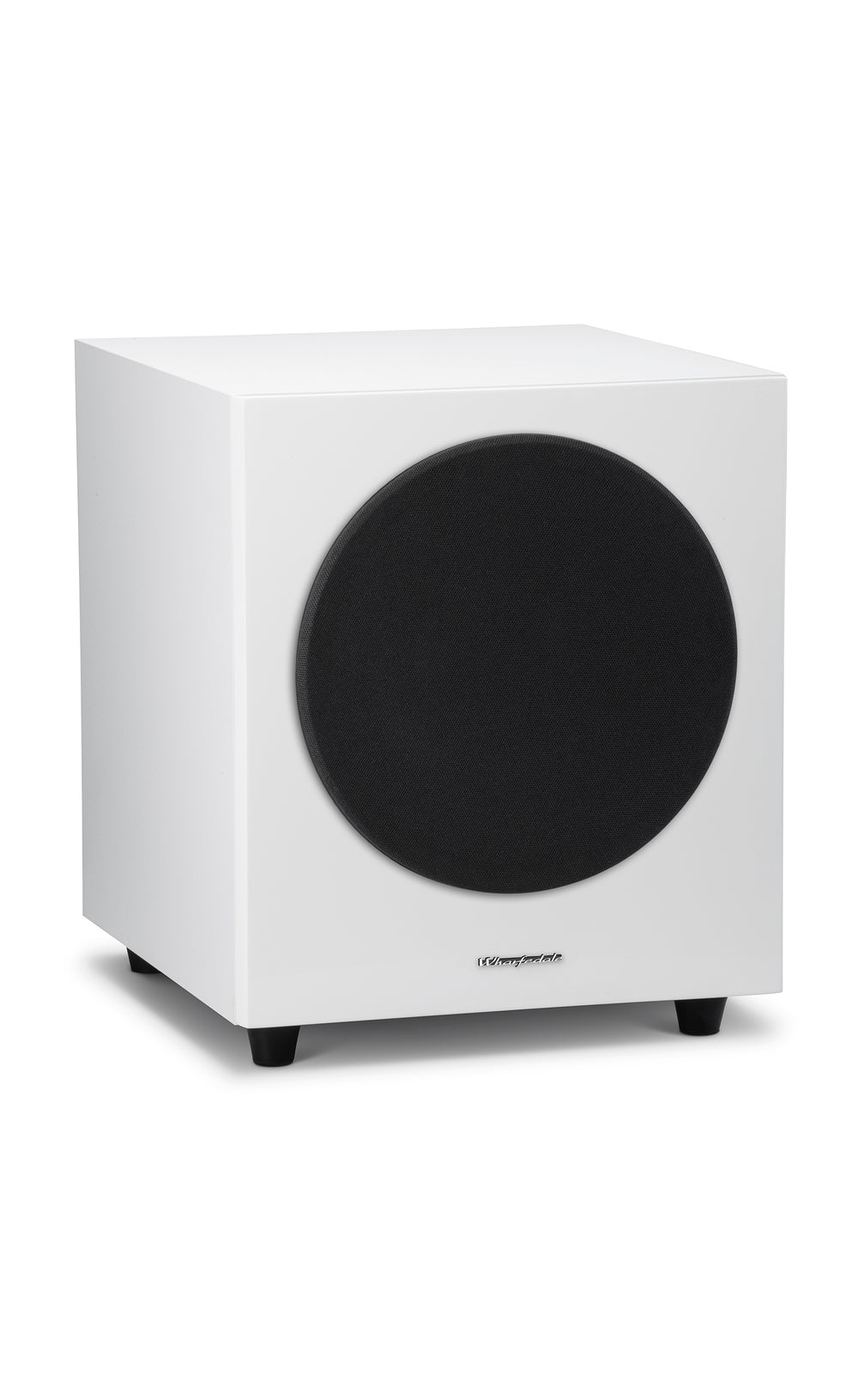

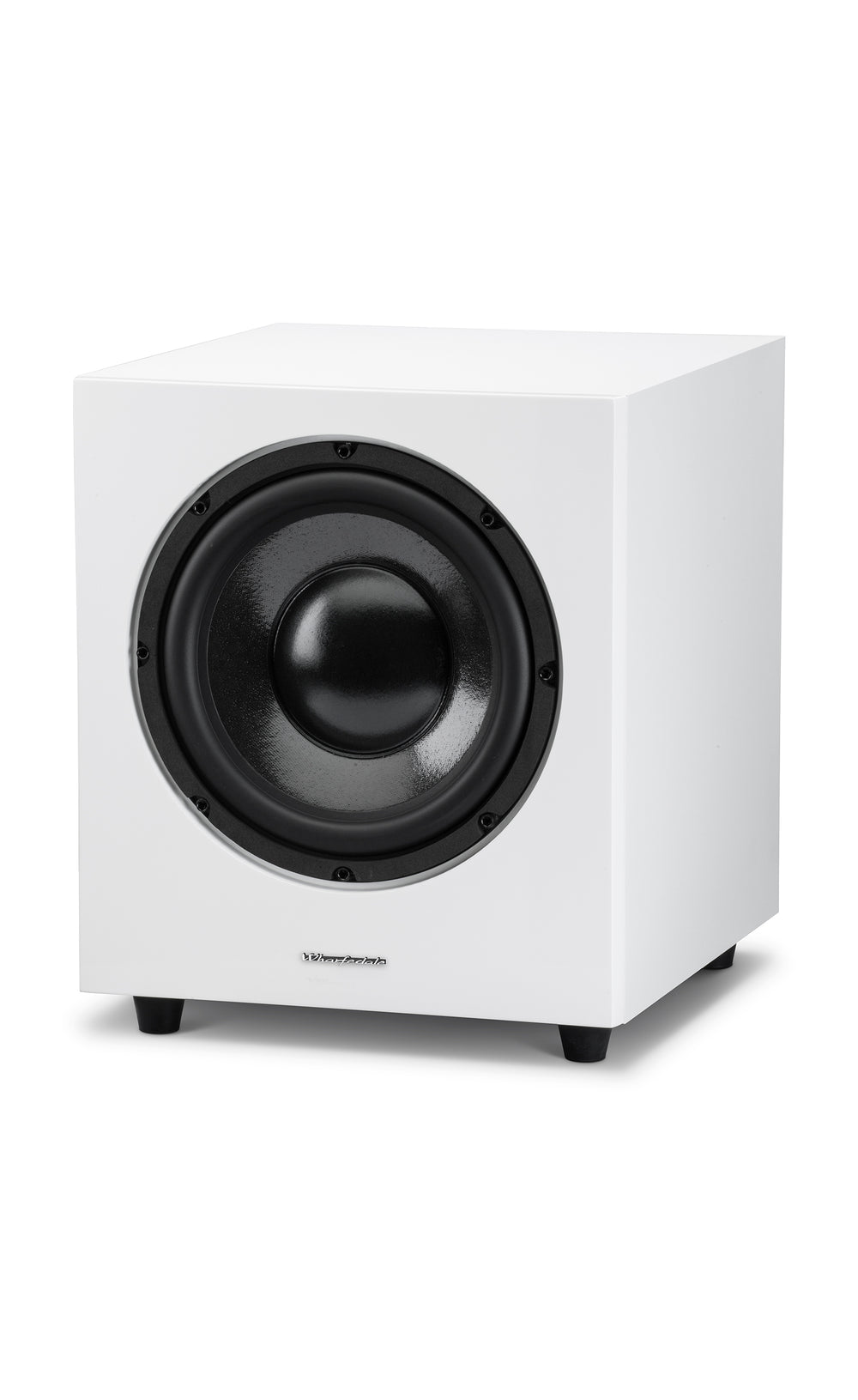

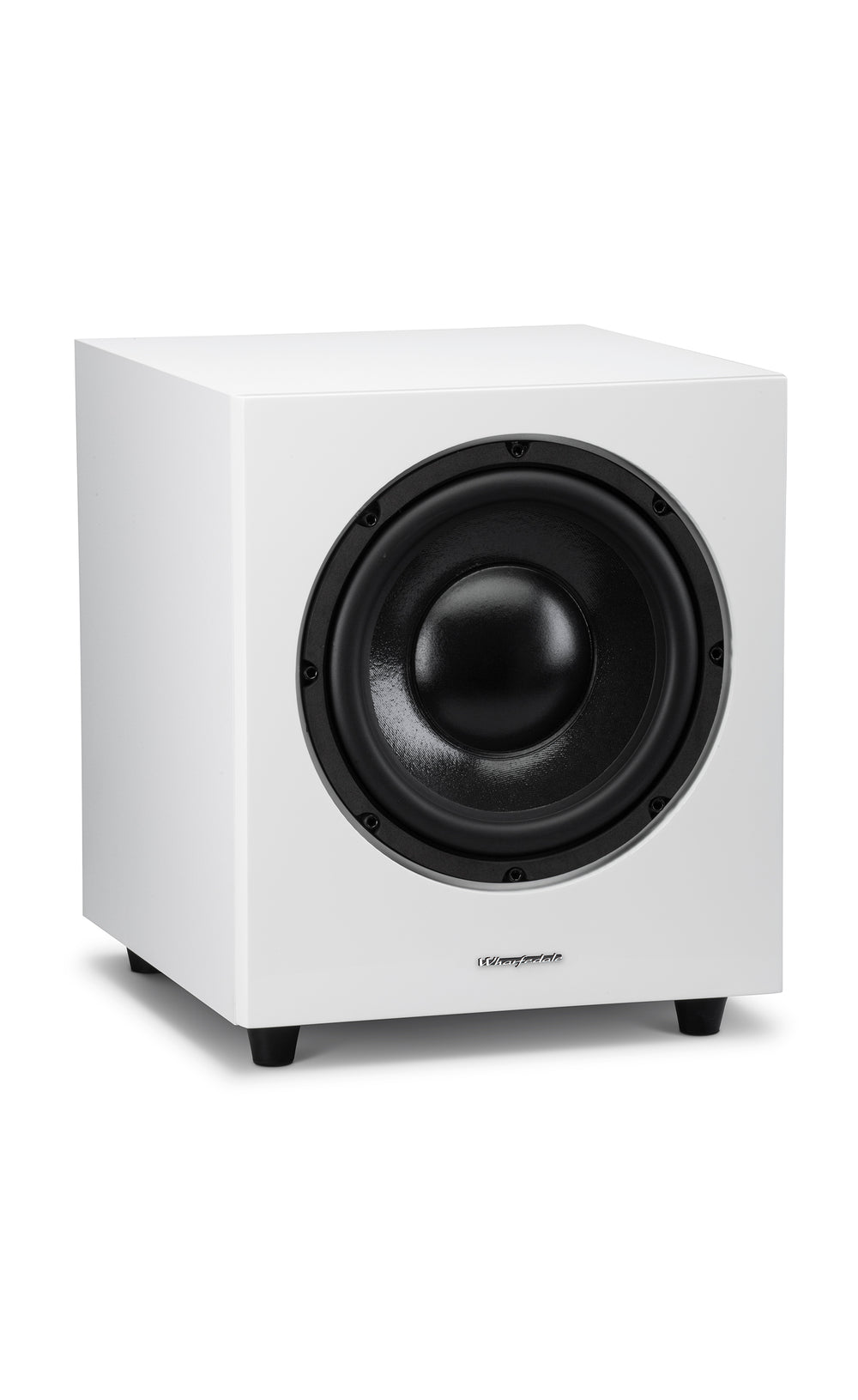

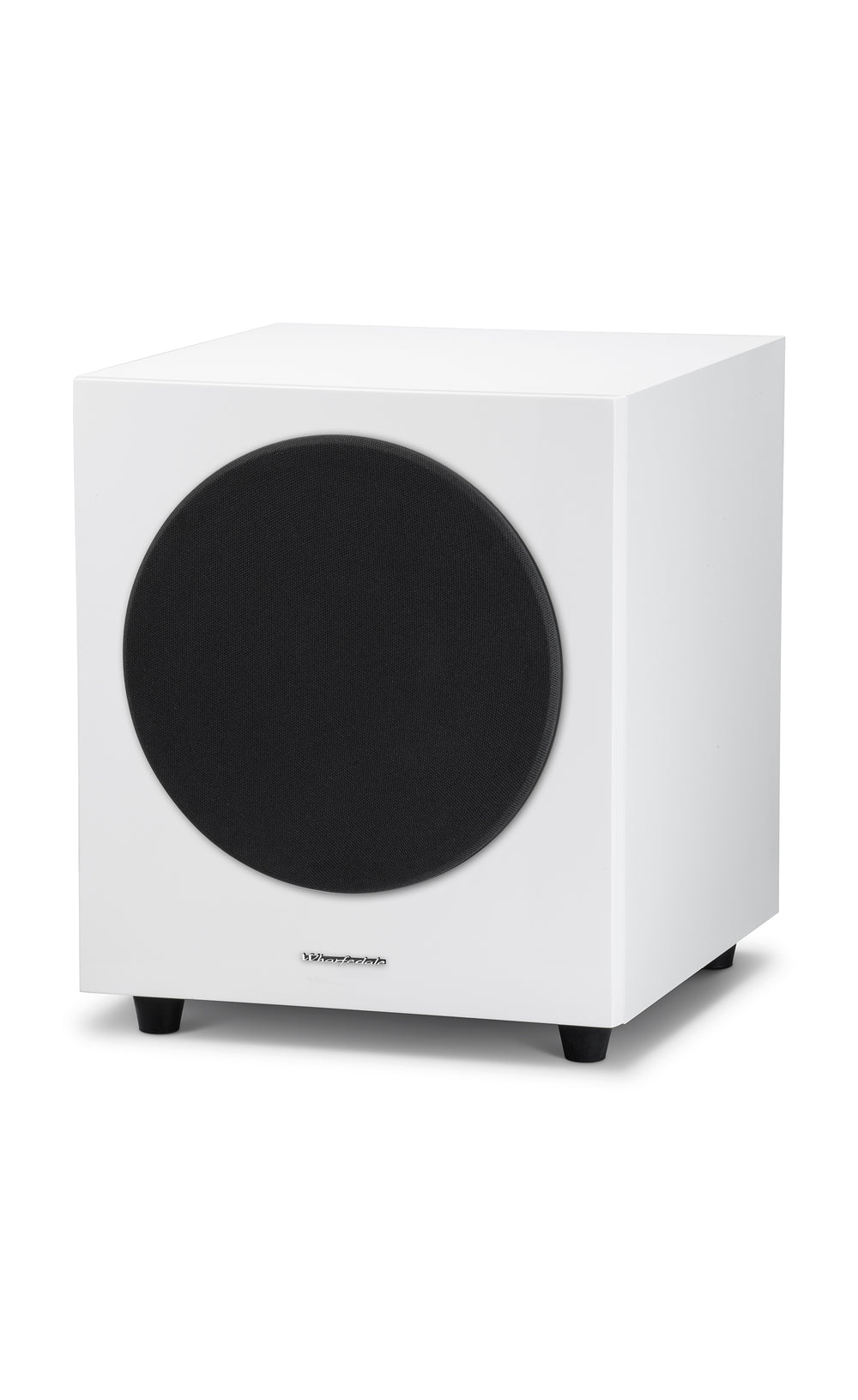

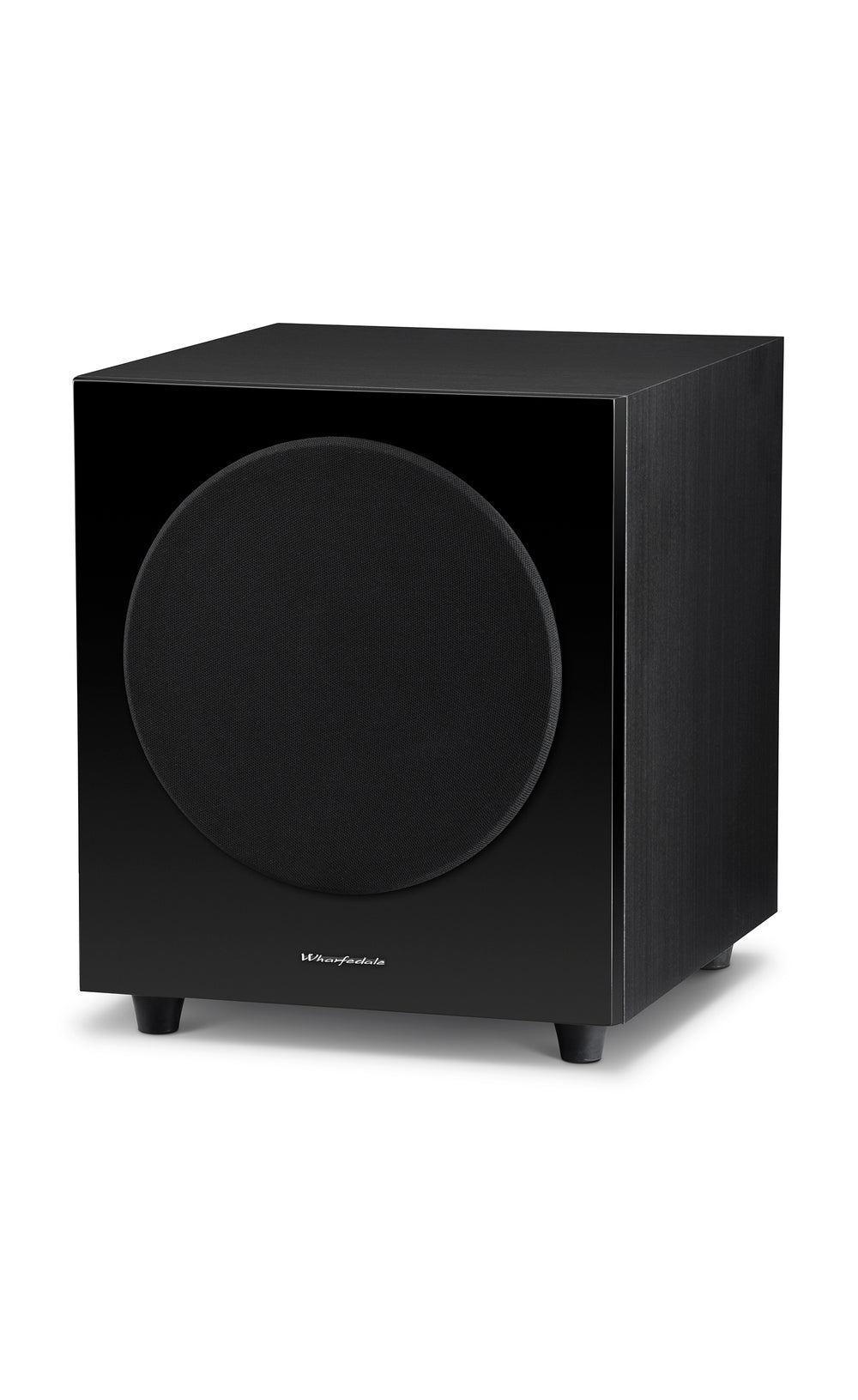

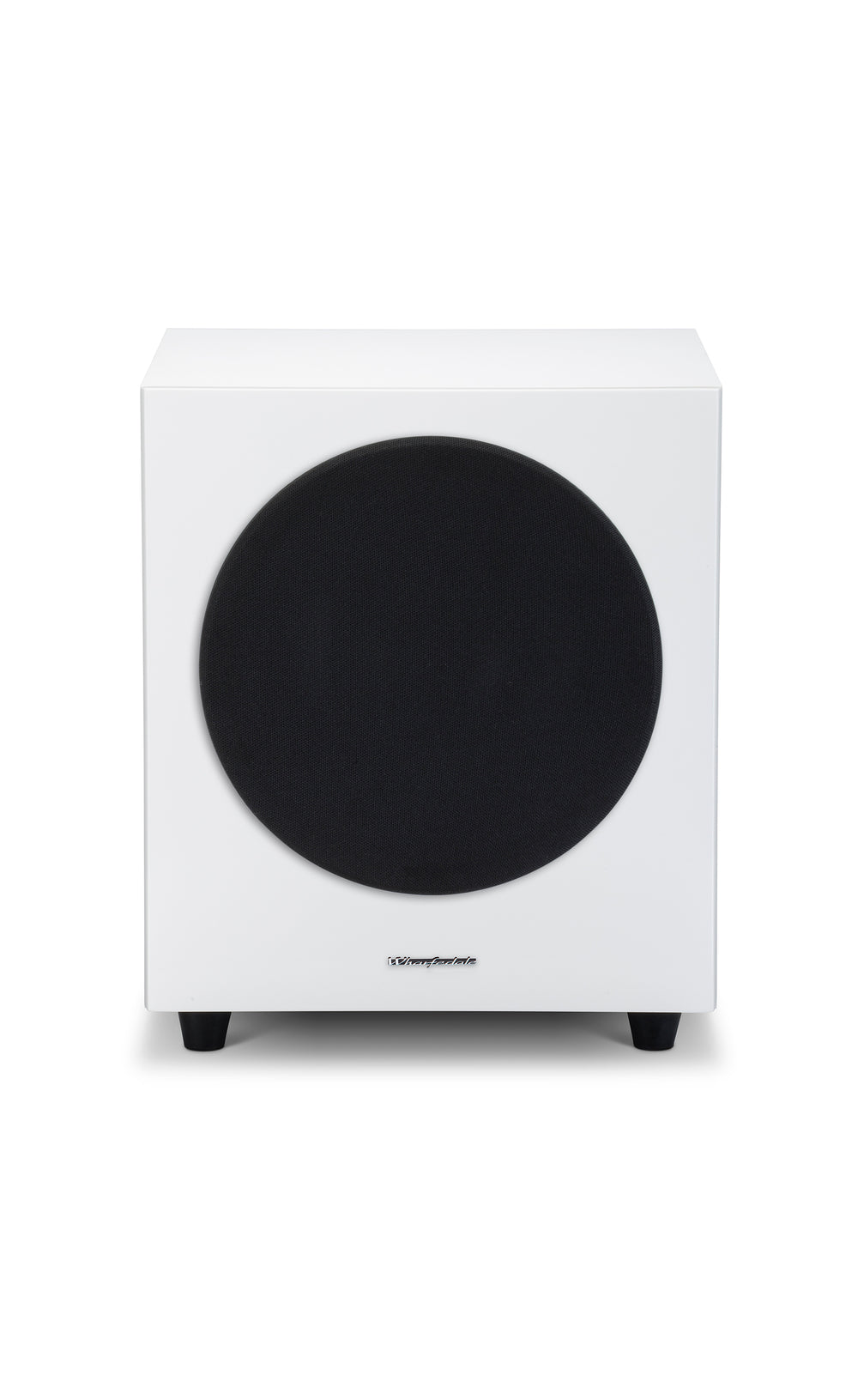

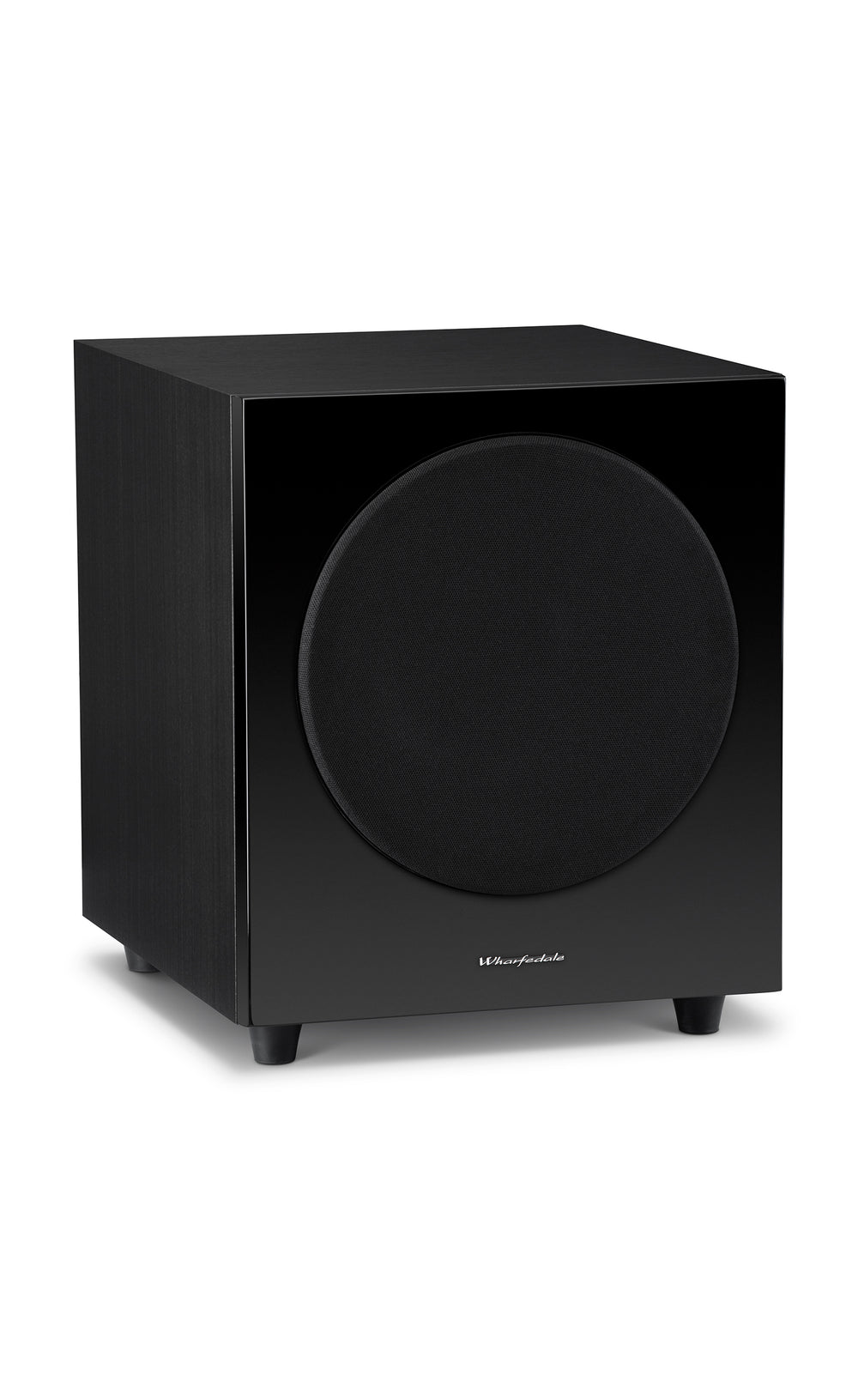

Their small size allows the D subs to be discreetly hidden from view, but their high gloss lacquer front baffle make them a welcome sight when visible. Both models are available in Black woodgrain or White pebble grain finish.
Key Features:
• Low pass filter slope continuously adjustable from 40Hz – 150Hz
• Phase invert switch
• Low-frequency bass extension (below 30Hz), with a wide 86dB dynamic range
• Low-level inputs, dedicated LFE input
• Auto On/Standby power sensor
